Garrett GVB-50A 50mm VTA BOV - Silver - 914956-0004
ds_BDZW_914956-0004
Out of stock
Regular price
$471.39
Sale price
$471.39
Regular price
Unit price
per
Shipping calculated at checkout.
Thank you. We'll let you know when it's back in stock.
Unable to save your request. Please try again.
Sorry, it's out of stock.
But we can let you know when it's back in.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.
Sold out

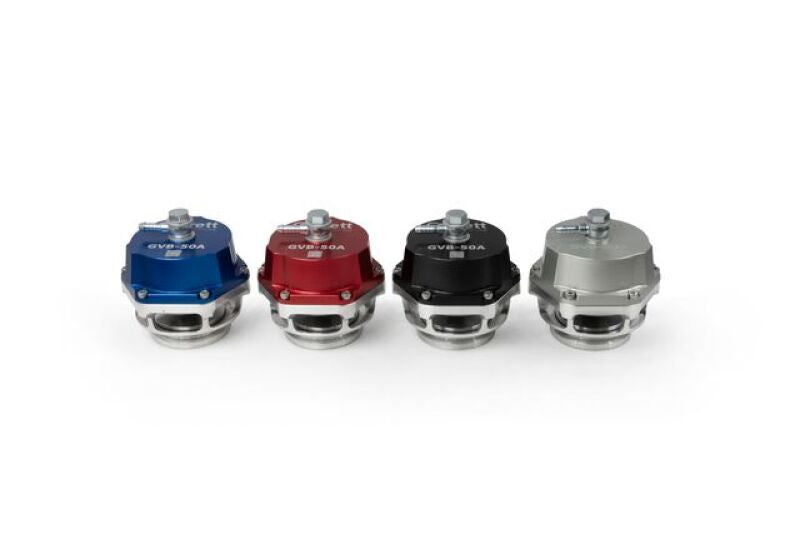

Garrett GVB Blow-Off Valves:
Features:
- Recirculating and Vent to atmosphere housing options
- CFD tested for maximum flow and thermal efficiency
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- 6061 Anodized aluminum actuator cover and fully-machined billet housing
- Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
- Springs | Fittings | Flanges | V-Bands included
- Configurable springs settings include rates from 0.2 Bar | 3 PSI – 0.9 Bar | 13 PSI
- Wrought Aluminum Alloy Weld Flange
- 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
- Plated stem and bushing for lowered friction and wear resistance
- High temp nomex reinforced diaphragm
- Stainless steel fittings and fasteners
Material Data
- Valve Housing: Fully-machined billet
- Diaphragm: High temp Nomex reinforced elastomer
- Actuator Cover: Fully-machined anodized 6061 aluminum
- Valve Bushing: Hard-anodized wrought aluminum alloy
- Valve: high temp stainless steel with plated stem
- V-Band: CNC machined 304 stainless steel
- Flanges: Fully-machined 304 stainless steel
- Springs: 17/7 PH stainless steel
Kit Contents
GVB-50 Blow-Off Valves include all the following parts:
- Springs (Installed: blue, white, Spare: red, green, brown)
- V-Band Assembly: (V-Band, bolt, nut)
- Inlet Flange and O-Ring
- Air Fitting Hardware (nuts, bolts, washers, banjo fitting)
Installation Instructions
Installation Instructions
Fitment
Fitment
